Mitsubishi universal AC servo amplifier MR-J2 series.

Rated output: 2.0kw.

Interface: Universal interface.

Voltage: three-phase AC200V.

The Mitsubishi servo amplifier in the Mitsubishi servo system is widely used,

Not only can it be used for applications that require position control and stable speed control, such as working machinery and general industrial machinery,

It can also be used in the fields of speed control and tension control.

By installing servo setting software on a personal computer, parameter setting, trial operation, status display, and gain adjustment can be carried out.

The Mitsubishi servo system MR-J2S column is a Mitsubishi servo system developed on the basis of the servo MR-J2 series, which has higher and higher functions,Its control modes include position control, speed control, torque control, and the switching control methods between them are available for selection.

Driver: MR-H_ ACN series CC-LINK function.

Rated output: 22KW.

This testing system consists of two parts, namely the tested servo driver - motor system and upper computer.

The upper computer sends the speed command signal to the servo driver,

The servo driver starts running Mitsubishi MR-J2-200A according to the command.

During operation, the upper computer and data

acquisition circuit collect the operating data of the servo system,

And save, analyze, and display the data

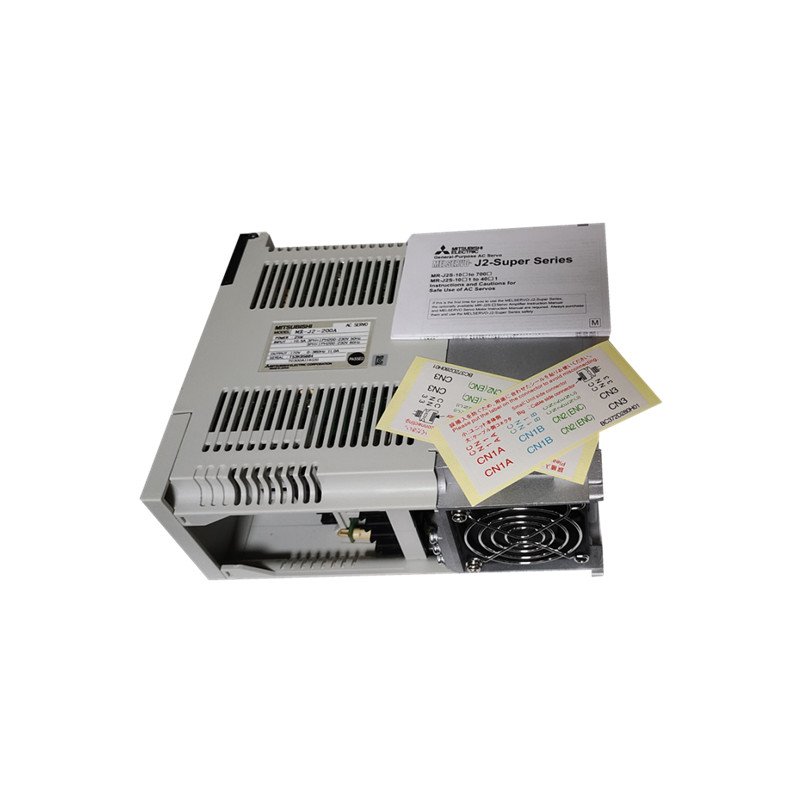

MR-J2-200A

Due to the fact that the motor does not

carry a load in this testing system,

So compared to the previous two testing

systems, the volume of this system is relatively smaller,

Moreover, the measurement and control circuits of the system are relatively simple,

However, this also makes it impossible for the system to simulate the actual operation of the servo driver.

Usually, this type of testing system is only used for testing the rotational speed and angular displacement of the tested system under no-load conditions.

Mitsubishi Servo Drive series model

Low inertia and small power (rated speed 3000rpm)

0.05KW:Drive MR-J2S-10A or MR-J2S-10B  Motor HC-KFS053(B)

0.1KW:Drive MR-J2S-10A or MR-J2S-10B  Motor HC-KFS13(B)

0.2KW:Drive MR-J2S-20A or MR-J2S-20B  Motor HC-KFS23(B)

0.4KW:Drive MR-J2S-40A or MR-J2S-40B  Motor HC-KFS43(B)

Drive MR-J2S-70A or MR-J2S-70B  Motor HC-KFS46(rated speed 6000rpm)

Drive MR-J2S-70A or MR-J2S-70B  Motor HC-KFS410(rated speed 10000rpm)

0.75KW:Drive MR-J2S-70A or MR-J2S-70B  Motor HC-KFS73(B)


***Inertia, small power (rated speed 3000rpm)

0.05KW:Drive MR-J2S-10A or MR-J2S-10B  Motor HC-MFS053(B)

0.1KW:Drive MR-J2S-10A or MR-J2S-10B  Motor HC-MFS13(B)

0.2KW:Drive MR-J2S-20A or MR-J2S-20B  Motor HC-MFS23(B)

0.4KW:Drive MR-J2S-40A or MR-J2S-40B  Motor HC-MFS43(B)

0.75KW:Drive MR-J2S-70A or MR-J2S-70B  Motor HC-MFS73(B)


Medium inertia, medium power   Rated speed: 1000rpm

0.85KW:Drive MR-J2S-100A or MR-J2S-100B  Motor HC-SFS81(B)

1.2KW:Drive MR-J2S-200A or MR-J2S-200B  Motor HC-SFS121(B)

2KW:Drive MR-J2S-200A or MR-J2S-200B  Motor HC-SFS201(B)

3KW:Drive MR-J2S-350A or MR-J2S-350B  Motor HC-SFS301(B)


Rated speed: 2000rpm

0.5KW:Drive MR-J2S-60A or MR-J2S-60B  Motor HC-SFS52(B)

1KW:Drive MR-J2S-100A or MR-J2S-100B  Motor HC-SFS102(B)

1.5KW:Drive MR-J2S-200A or MR-J2S-200B Motor HC-SFS152(B)

2KW:Drive MR-J2S-200A or MR-J2S-200B  Motor HC-SFS202(B)

3.5KW:Drive MR-J2S-350A or MR-J2S-350B  Motor HC-SFS352(B)

5KW:Drive MR-J2S-500A or MR-J2S-500B  Motor HC-SFS502(B)

7KW:Drive MR-J2S-700A or MR-J2S-700B  Motor HC-SFS702(B)


Rated speed: 3000rpm

0.5KW:Drive MR-J2S-60A or MR-J2S-60B Motor HC-SFS53(B)

1KW:Drive MR-J2S-60A or MR-J2S-60B  Motor HC-SFS103(B)

1.5KW:Drive MR-J2S-200A or MR-J2S-200B  Motor HC-SFS153(B)

2KW:Drive MR-J2S-200A or MR-J2S-200B  Motor HC-SFS203(B)

3.5KW:Drive MR-J2S-350A or MR-J2S-350B  Motor HC-SFS353(B)


Low inertia, medium power (rated speed 2000rpm)

0.5KW:Drive MR-J2S-60A or MR-J2S-60B  Motor HC-LFS52(B)

1KW:Drive MR-J2S-100A or MR-J2S-100B  Motor HC-LFS102(B)

1.5KW:Drive MR-J2S-200A or MR-J2S-200B  Motor HC-LFS152(B)

2KW:Drive MR-J2S-350A or MR-J2S-350B  Motor HC-LFS202(B)

3KW:Drive MR-J2S-500A or MR-J2S-500B  Motor HC-LFS302(B)


***Inertia, medium power (rated speed 2000rpm)

1KW:Drive MR-J2S-200A or MR-J2S-200B  Motor HC-RFS103(B)

1.5KW:Drive MR-J2S-200A or MR-J2S-200B  Motor HC-RFS153(B)

2KW:Drive MR-J2S-350A or MR-J2S-350B Motor HC-RFS203(B)

3.5KW:Drive MR-J2S-500A or MR-J2S-500B  Motor HC-RFS353(B)

5KW:Drive MR-J2S-500A or MR-J2S-500B  Motor HC-RFS503(B)
