Contactors are divided into AC contactors (voltage AC) and DC contactors (voltage DC), which are used in power, distribution, and consumption. Contactors generally refer to industrial electrical appliances that use coils to flow current to generate a magnetic field, causing the contacts to close, in order to control the load

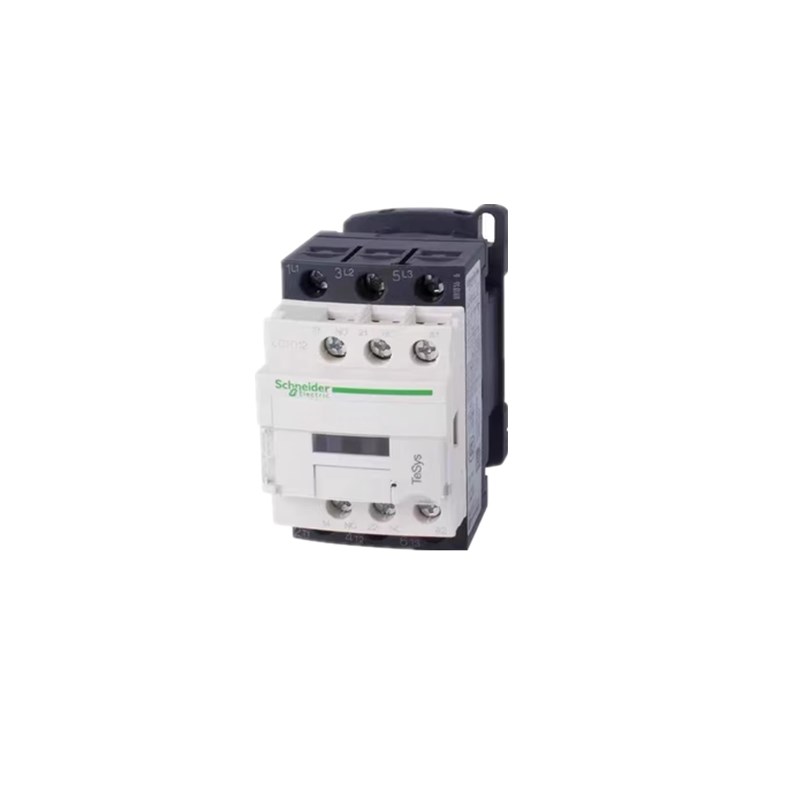

LC1 corresponds to the (CJX2, CJX4) series of AC contactors (hereinafter referred to as contactors), mainly used for AC 50H7 or 60Hz, AC voltage up to 660V (690V), AC-3 operating voltage of 380V, rated working current up to 170A in circuits, for long-distance connection and disconnection of circuits, and can be combined with corresponding specifications of thermal relays to form magnetic starters to protect circuits that may experience overload, Contactors are suitable for frequently starting and controlling AC motors.

1. The coil voltage of the contactor is AC 24V, 36V, 48V, 110V, 220V, 380V, DC 12V, 24V, 48V

110V、220V:

Note: Special voltage specifications can be customized through consultation with our company.

2. Action characteristics: AC pull-in voltage: 85-110% Us. Release voltage: 20-75% Us; DC pull-in voltage of 85-110% Us, release voltage of 10-75% Us.

Rated working voltage (V) 660 (690)
