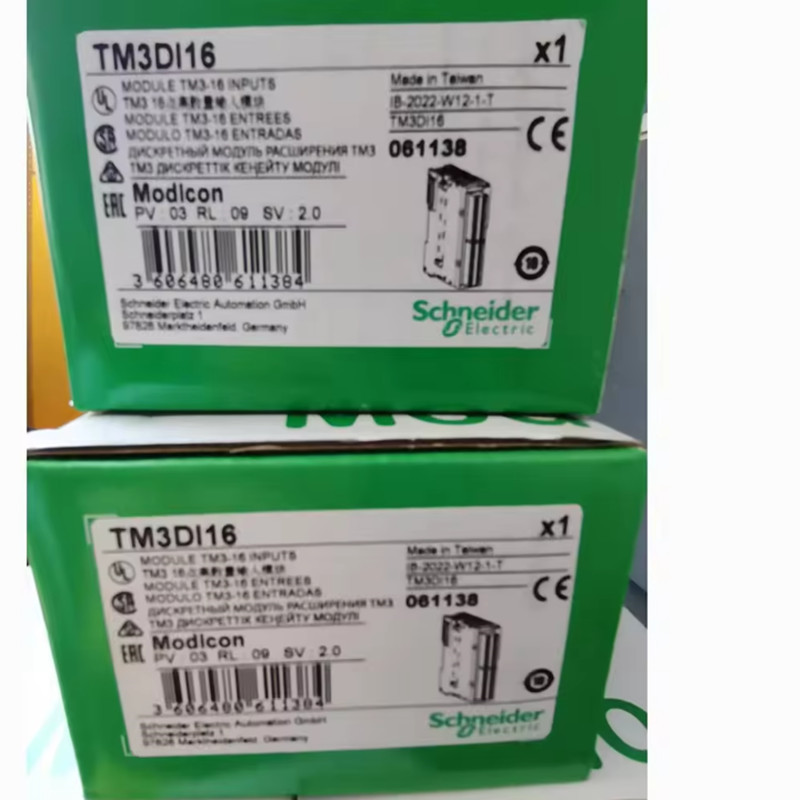

Here are some key features and specifications of the TM3DI16 module:

Input Configuration: The module has 16 digital input channels that can be configured individually as either sinking (NPN) or sourcing (PNP) inputs. This flexibility allows you to interface with a wide range of devices or sensors.

Voltage Range: The TM3DI16 module supports a wide range of input voltage levels, including 24VDC and 100...240VAC. This allows you to connect various types of input signals to the module.

Input Filtering: The module provides configurable input filtering to help eliminate noise or debounce input signals. The filter time can be adjusted to suit your application requirements.

Connection to PLC: The TM3DI16 module connects to the Modicon M221 PLC using the Modicon TM3 bus system. It can be easily mounted onto the DIN rail alongside other TM3 expansion modules, facilitating a compact and modular installation.

Programming Software: To configure and program the TM3DI16 module, you would typically use Schneider Electric's programming software called SoMachine Basic, which is designed specifically for the M221 series of PLCs.
